192 kHz Digital Audio Receiver

The CS8416 is a digital audio receiver that supports sample rates up to 192 kHz. It enables consumer and professional audio products to exchange S/PDIF and AES/EBU audio data. An 8:2 input multiplexer allows for up to eight channels of digital audio input data. The second output of the input multiplexer allows for a S/PDIF pass-through function for added system flexibility. It has an extremely low-jitter clock-recovery mechanism that yields a very clean recovered clock from the incoming audio stream. The device also allows for selectable signal routing to three general-purpose output pins. With its extremely low-jitter performance of 200 ps, the CS8416 is an industry-leading 192 kHz digital audio receiver. The CS8416 is ideal for consumer and professional applications such as audio/video receivers, multimedia speakers, digital mixing consoles, automotive audio systems and set-top boxes.

Features

  • Compatible with EIAJ CP1201, IEC-60958 and AES3 standards
  • 8:2 S/PDIF input mux; selectable pins in hardware mode
  • Selectable signal routing to three general-purpose output pins
  • S/PDIF to Tx inputs selectable in hardware mode
  • Flexible 3-wire serial digital output port
  • 32 kHz to 192 kHz sample frequency range
  • Low-jitter clock-recovery
  • Pin and microcontroller read access to channel status and user data
  • SPI (serial port interface) or I²C control port software mode and standalone hardware mode
  • Differential cable receiver
  • On-chip channel status data buffer memories
  • Autodetection of compressed audio input streams
  • Decodes CD Q subcode
  • OMCK system clock mode
  • 3.3 V analog supply (VA), 3.3 V digital supply (VD) and 3.3 V to 5 V digital interface supply (VL)

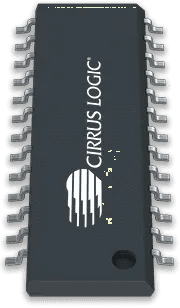

  • Package: 28-pin SOIC, 28-pin TSSOP, 28-pin QFN; lead-free assembly

Parametric Specifications

Sample Rate (kHz) 192
IEC-60958, AES-3, S/PDIF RX Inputs 8
On-Chip Line Driver false
On-Chip SRC false
Host Interface true
Analog Power Supply (V) 3.3
Supply Current (µA) 3.3
Logic Power Supply (V) 3.3-5
Package 28 SOIC;
28 TSSOP;
28 QFN

Technical Documents

CRD-SB15Wx2 Product Bulletin

Oct 29, 2009, 0233-1009-PB : 1874 Kb

CRD-SB30Wx2 Product Bulletin

Oct 29, 2009, 0232-1009-PB : 1764 Kb

CS8416 Product Data Sheet

Sep 5, 2007, DS578F3 : 988 Kb

Errata: CDB8416 Rev B Evaluation Board

Feb 1, 2003, ER578D1 : 37 Kb

CS8416 Product Bulletin

Sep 1, 2002, 0058-0902-PB : 599 Kb
